Enquire for Price
Contact Vector RTK for pricing and package information.

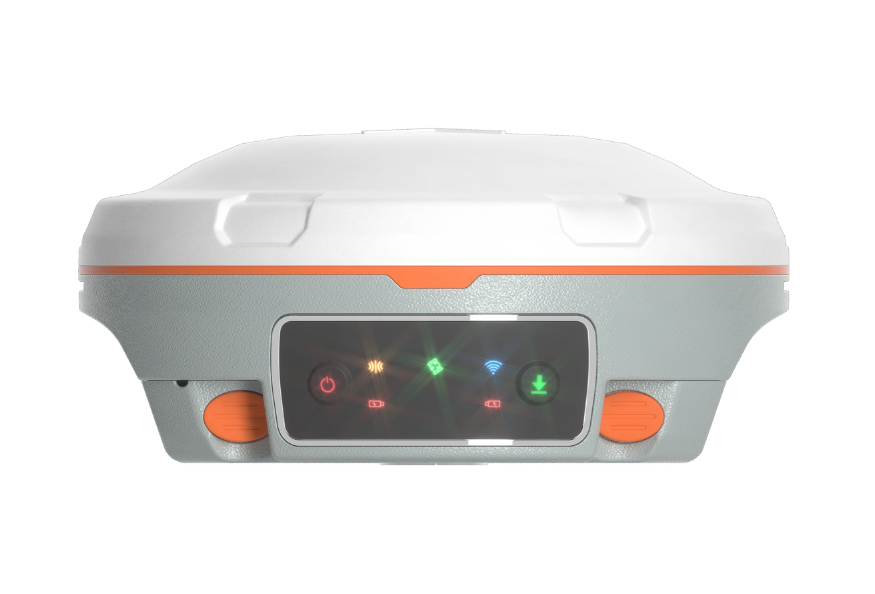

The ComNav Mars 10m Laser RTK receiver combines GNSS positioning, an IMU and a laser distance meter for surveying points that are difficult to reach with a pole. Its K8 platform provides 1,590 tracking channels.
The 10m model has calibration-free tilt surveying, an IP67-rated housing and UHF, 4G, Wi-Fi and Bluetooth connectivity. Contact Vector RTK for pricing and package information.
| Model | Mars Laser RTK – 10m version |
|---|---|
| Laser range | 10m |
| Laser accuracy | At room temperature: (3-5) mm + 1 ppm |
| Laser rate | 3 Hz typical; 5 Hz maximum |
| GNSS channels | 1590 |
| RTK accuracy | Single baseline – Horizontal: 8 mm + 1 ppm RMS; vertical: 15 mm + 1 ppm RMS |
| IMU tilt | Up to 60 degrees; 2.5 cm accuracy |
| Laser tilt | Up to 5.5 cm at 5m range and up to 60 degrees tilt in laser mode |
| IP rating | IP67 |
| Battery | 2 x 3400 mAh |
| Memory | 8 GB |
| Weight | 1.2 kg with two batteries |
